Day 7 What you ask of a designed experiment

June 17th, 2025

7.1 Announcements

  • Homework due this Friday
  • Project proposal due this Friday
  • Next week will be on Zoom

7.2 Review

Pre-selected treatments are usually assumed to affect the expected value. Today we’ll focus on those means of interest.

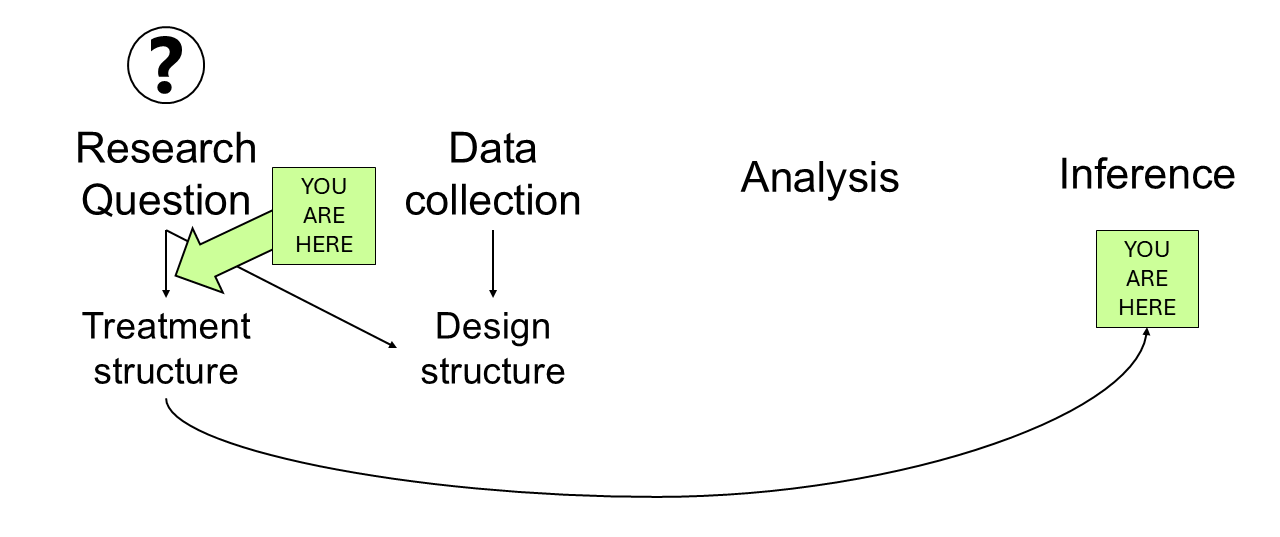

Mindmap of the analysis of a designed experiment, from the inception to the end conclusions

Figure 7.1: Mindmap of the analysis of a designed experiment, from the inception to the end conclusions

7.3 ANOVA

Table 7.1: Treatment ANOVA for a one-way treatment structure
Source df
Treatment t-1
Parallels N-t
Total N-1
Table 7.2: Treatment ANOVA for a two-way treatment structure
Source df
Factor A a-1
Factor B b-1
A x B (a-1)(b-1)
Parallels N-(ab)
Total N-1
Table 7.3: Treatment ANOVA for a three-way factorial treatment structure
Source df
Factor A a-1
Factor B b-1
Factor C c-1
A x B (a-1)(b-1)
A x C (a-1)(c-1)
B x C (b-1)(c-1)
A x B x C (a-1)(b-1)(c-1)
Parallels N-(abc)
Total N-1

7.3.1 In case you were wondering: ANOVA and types of sums of squares

  • Type I SS: ordered
  • Type II SS: conditional on main effects
  • Type III SS: conditional on all effects
  • From SS to test F value, to hypothesis test:
    • \(F = \frac{SS_{t}/df_t}{SS_{e}/df_e}\)

7.4 Setting the stage: Estimated marginal means aka least squares means

Sometimes, model coefficients or effects are hard to interpret. In designed experiments, we often use the estimated marginal means or least square means to provide a more interpretable result. Estimated marginal means are the expected mean for a given level of a factor, averaging over the other factors in the model. In R, the estimated marginal means are famously handled with the emmeans package.

7.4.1 Example:

Download the R script to follow along!

More about estimated marginal means:

  • emmeans website [link]

7.4.2 Discussion

  • What is the risk of making inference over a single treatment factor when the estimated interaction seemed to be relevant to explain variability in the data?
  • Where do the degrees of freedom come from?
